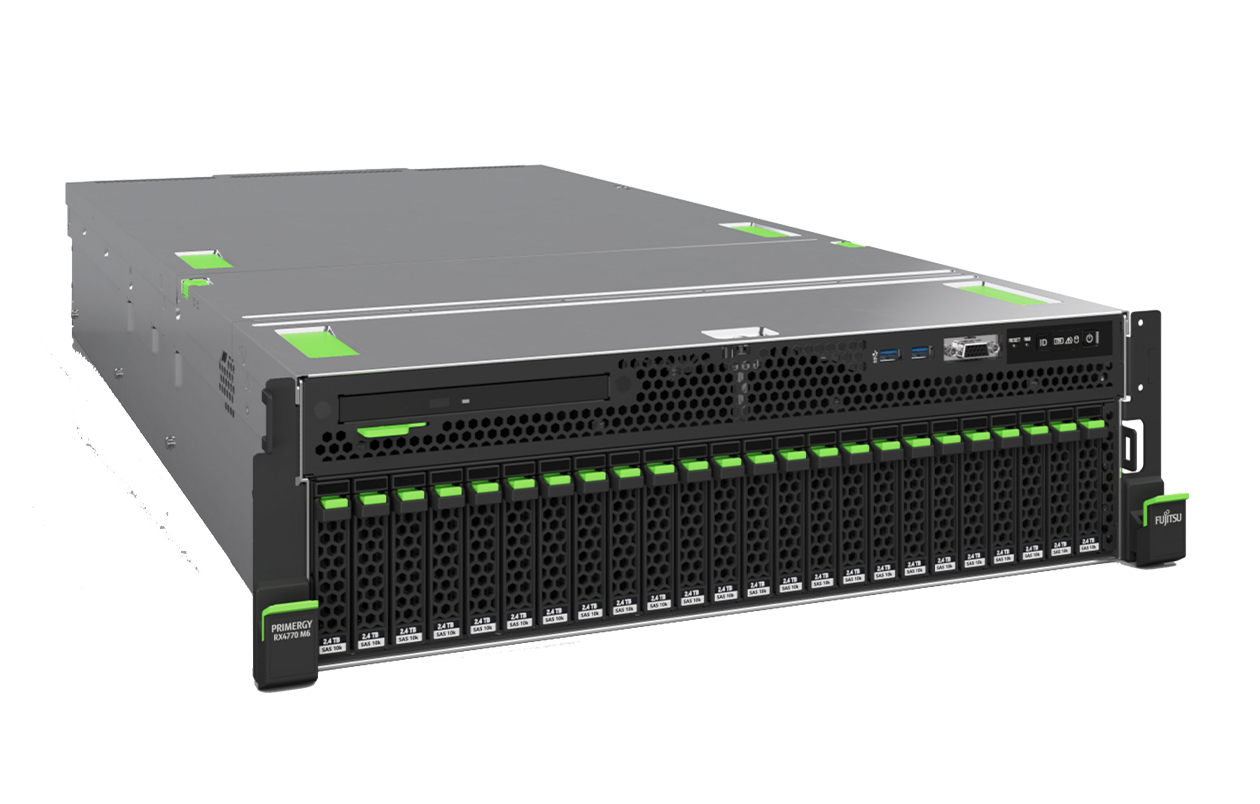

Fujitsu RX4770 M6
Base price
Description
| Chipset |
Intel® C621A
|
| Mainboard type |
D3892
|
| Product Type |
Quad Socket Rack Server
|
| Processor |
Intel® Xeon® Gold 53xxH processors, Intel® Xeon® Gold 63xxH processors, Intel® Xeon® Platinum 83xxH processors, Intel ® Xeon® Platinum 83xxHL processors
2 or 4 |
| Memory |
16 GB - 15 TB, DIMM (DDR4 RDIMM, LRDIMM and Intel®
Optane™ PMem)
|
| Memory slots |
48 (12 DIMMs per CPU, 6 channels with 2 slots per channel)
|
| Memory protection |
ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device
Correction), Memory Mirroring support
|
| Drives (optional) |
DVD supermulti, ultraslim, SATA I
|
| PCI-Express 3.0 x16 |
11 x whereas 4x full height and 7x low profile
|
| Optional accessible drives |
1 x 5.25/9.5mm for DVD-RW/Blu-ray
All possible options described in relevant system configurator. |
| Storage drive bays |
2.5-inch hot-plug SAS/SATA/PCIe
2 x M.2 slots 8 x 2.5-inch hot-plug SAS/SATA/PCIe 16 x 2.5-inch hot-plug SAS/SATA/PCIe 24 x 2.5-inch hot-plug SAS/SATA/PCIe |
| LAN Controller |
Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP
adaptors:, 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4
x 10 Gbit/s SFP+, 2 x 25 Gbit/s QSFP28, 2x 100 Gbit/s QSFP28
|
| Remote Management |
Integrated Remote Management Controller (iRMC S5, 512 MB
attached memory incl. graphics controller), IPMI 2.0 compatible
|
| USB ports |
5 x USB 3.0 (2x front, 2x rear, 1x internal)
|
| Graphics |
2 x VGA (1 x front, 1 x rear)
|
| Management LAN (RJ45) |
1 x dedicated management LAN port for iRMC S5 (10/100/1000
Mbit/s)
|
| Trusted Platform Module (TPM) |
Infineon / TPM 2.0 module; TCG compliant (option)
|
| Power supply configuration |
2 hot-plug power supplies (standard)
|
| Active power (max. configuration) |
2,518 W
|
| Weight |
max. 40 kg
|
| Rack (W x D x H) |
482.7 mm (Bezel) / 435 mm (Body) x 800 x 129.4 mm
|
| Mounting Depth Rack |
830.7 mm
|
| DC Infrastructure Management |
Infrastructure Manager (ISM)
Essential Edition Advanced Edition |
| Server Management |
Infrastructure Manager (ISM)
Essential Edition Advanced Edition, ServerView Suite |
