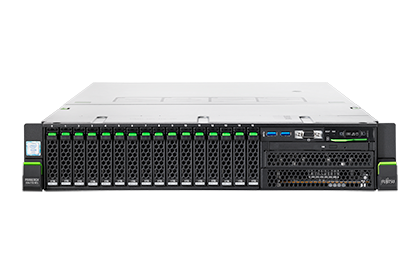

Fujitsu RX4770 M5
Base price
Description
| Chipset |
Intel® C624
|
| Mainboard type |
D3753
|
| Product Type |
Quad Socket Rack Server
|
| Processor |
Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel ® Xeon® Platinum 8xxx processor
2 or 4 4 |
| Memory |
16 GB - 15 TB, DIMM (DDR4 / DDR-T for non-volatile memory
modules)
|
| Memory slots |
48 (12 DIMMs per CPU, 6 channels with 2 slots per channel)
|
| Memory protection |
Advanced ECC, Memory Scrubbing, SDDC, Memory Mirroring support,
Rank sparing memory support
|
| Drives (optional) |
DVD supermulti, ultraslim, SATA I
|
| PCI-Express 3.0 x16 |
8 x whereas 4x full height and 4x low profile with up to 167mm
length
|
| Optional accessible drives |
1 x 5.25/9.5mm for DVD-RW/Blu-ray
All possible options described in relevant system configurator. |
| Storage drive bays |
2.5-inch hot-plug SAS/SATA/PCIe
2 x M.2 slot whereas slot 1 supports 80mm or 110mm and slot 2 supports 42mm or 80mm 16 x 2.5-inch hot-plug SAS/SATA/PCIe 8 x 2.5-inch hot-plug SAS/SATA/PCIe |
| LAN Controller |
DynamicLoM based on Intel® C624 (Intel®
X722)
Optional DynamicLoM OCP adaptors:, 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 1 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s SFP+ |
| Remote Management |
Integrated Remote Management Controller (iRMC S5, 512 MB
attached memory incl. graphics controller), IPMI 2.0 compatible
|
| USB ports |
5 x USB 3.0 (2x front, 2x rear, 1x internal)
|
| Graphics |
2 x VGA (1 x front, 1 x rear)
|
| Management LAN (RJ45) |
1 x dedicated management LAN port for iRMC S5 (10/100/1000
Mbit/s), Management LAN traffic can be switched to shared
onboard LAN controller port, speed and connector is related to
installed interface card.
|
| Trusted Platform Module (TPM) |
Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
|
| Power supply configuration |
2 hot-plug power supplies (standard), single power supply
configuration possible
|
| Active power (max. configuration) |
2,335 W
|
| Weight |
max. 29.7 kg
|
| Rack (W x D x H) |
482.6 mm (Bezel) / 434.8 mm (Body) x 724.8 x 86.9 mm
|
| Mounting Depth Rack |
741.3 mm
|
| DC Infrastructure Management |
Infrastructure Manager (ISM)
Essential Advanced |
| Server Management |
Infrastructure Manager (ISM)
Essential Advanced, ServerView Suite |
