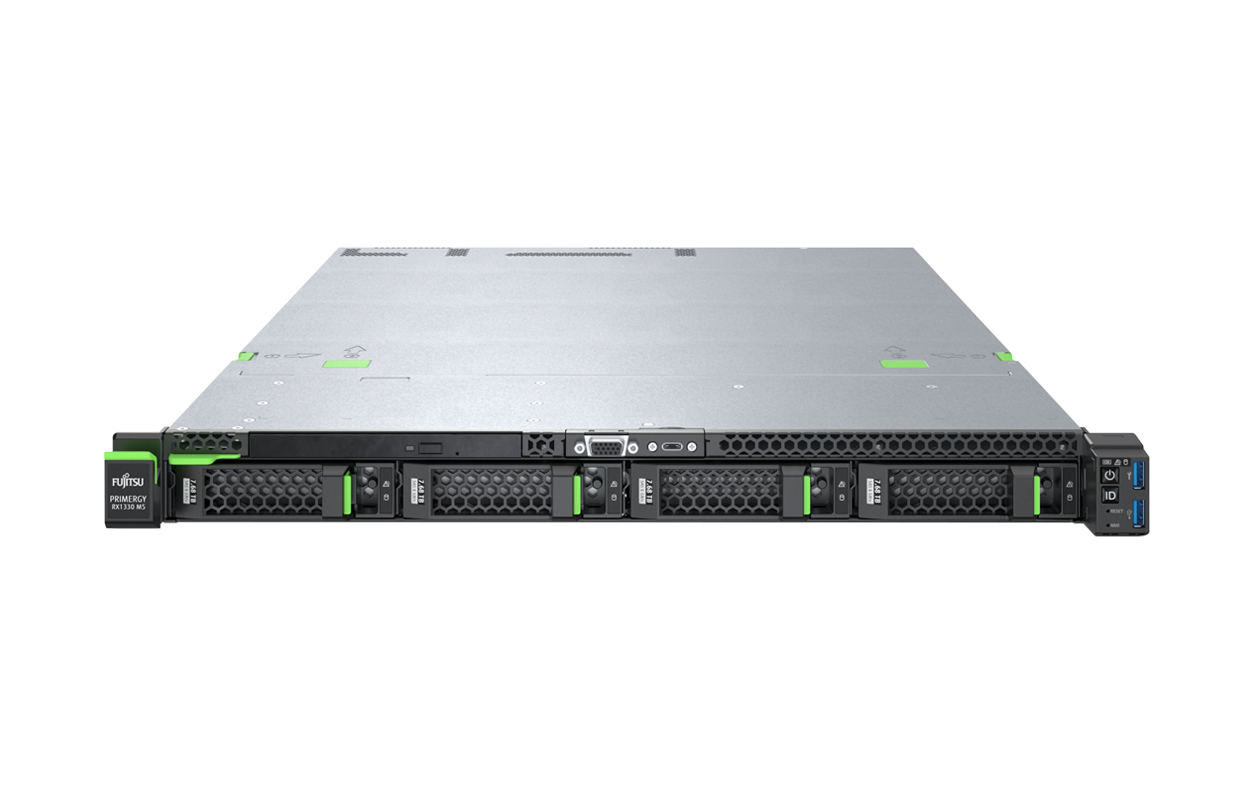

Fujitsu RX1330 M5
Base price
Description
| Chipset |
Intel® C256
|
| Mainboard type |
D3929
|
| Product Type |
Mono Socket Rack Server
|
| Processor |
Intel® Xeon® E-2300 processor family,
Intel® Pentium® processor
|
| Memory |
8 GB - 128 GB, UDIMM (DDR4)
|
| Memory slots |
4
|
| Memory protection |
ECC
|
| Drives (optional) |
DVD supermulti, ultraslim, SATA I
|
| PCI-Express 3.0 x4 |
1 x Low profile
|
| PCI-Express 4.0 x8 |
2 x Low profile
|
| Accessible drive bays |
1 x 5.25/9.5mm for DVD-RW/Blu-ray
|
| Optional accessible drives |
Not for 10x 2.5-inch HDD base unit. All possible options
described in relevant system configurator.
|
| Storage drive bays |
4/8 x 2.5-inch hot-plug SATA/SAS (Up to 4x NVMe PCIe SSD
supported) or 4x 3.5-inch hot-plug or 10 x 2.5-inch hot-plug
SATA/SAS
Max. 4x 3.5-inch Max. 8x 2.5-inch Max. 10x 2.5-inch 4x 2.5-inch |
| LAN Controller |
Intel® i210 onboard
2 x 10/100/1000 Mbit/s Ethernet (TCP/IP acceleration) |
| Remote Management |
Integrated Remote Management Controller (iRMC S6, 1024 MB
attached memory incl. graphics controller)
|
| USB ports |
5 (Rear: 2x 3.2 Gen1 for all base units, Front (except 10x 2.5"
base unit): 2x USB 3.2 Gen1, 1x USB 3.2 Gen2(20 Gb, Type C) ,
Front (for 10x 2.5" base unit): 2x USB 3.2 Gen1)
|
| Graphics |
1 x VGA (15-pin) / optional 1 x front VGA (not for 10x 2.5”
base unit)
|
| Management LAN (RJ45) |
1 x dedicated management LAN port for iRMC S6 (10/100/1000
Mbit/s), Management LAN traffic can be switched to shared
onboard Gbit LAN port
|
| Trusted Platform Module (TPM) |
TPM 2.0 module (option)
|
| Power supply configuration |
1x standard power supply or 1x hot-plug power supply or 2x
hot-plug power supplies for redundancy depending on model
|
| Active power (max. configuration) |
1,088 W
|
| Weight |
Std: max.13 kg / Short depth: max. 10 kg
|
| Rack (W x D x H) |
482.6 mm (Bezel) / 435.4 mm (Body) x 612 x 43 mm
|
| DC Infrastructure Management |
Infrastructure Manager (ISM)
Essential Edition Advanced Edition |
